Orbea Rallon Link Black

The Party On Rallon Linkage is compatible with any 150mm R5 and offers increased rear travel to 160mm, a kinematic adjustment that improves sensitivity, and a more progressive lever curve. All this without altering the Rallon's geometry.

Features

Increased Travel
The Rally On Linkage increases travel from 150mm to 160mm without altering the geometry.

Improved Sensitivity
Smaller bumps and the rattle of rocks and tree roots are smoothed out, giving the Rallon a more relaxed feel.

Progressive Damper
The new linkage is 20% more progressive compared to 8% for the 150mm version. This provides greater support mid-stroke and improves pedaling endurance and control when the trail gets rough.

Shock Settings
The increased overall leverage ratio means riders will need stiffer springs. For example, 175 PSI on the old joints is roughly equivalent to 190-195 PSI on the new ones. The weight of the coil shock would also increase from 450 to 475, for example. Compression and rebound settings will need to be adjusted to accommodate the higher spring rate.

No Geometry Changes
We haven't altered the R5 frame geometry, and the joints are 100% compatible with your R5's rear shock.

Description

We listened to our riders' feedback and collaborated with our Enduro team to subtly but profoundly transform the Rallon R5. The Party On Rallon linkage provides an increase in rear travel to 160mm, a kinematic adjustment that improves sensitivity, and a more progressive lever curve, all designed to deliver a more aggressive riding experience. The linkage does not alter the frame geometry or shock length, so it is compatible with previous 150mm R5 models.

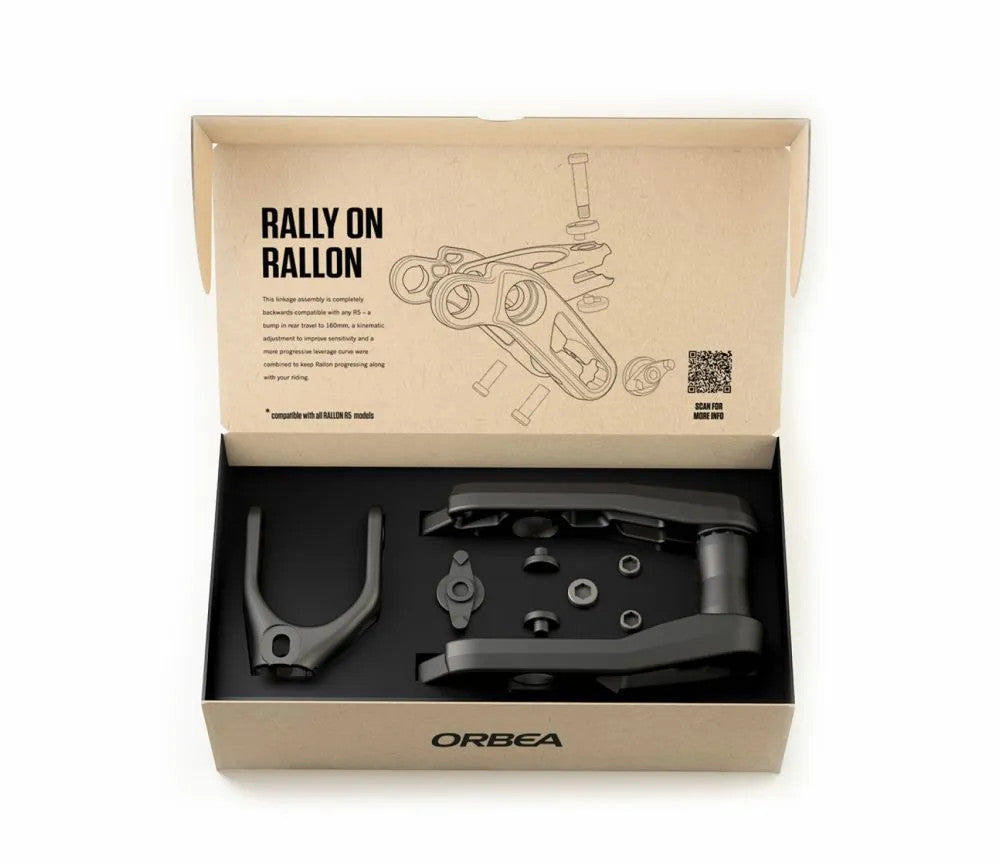

Box Contents

Party On Linkage
Complete Mounting Kit
All Bearings
Pre-Load Adjuster
