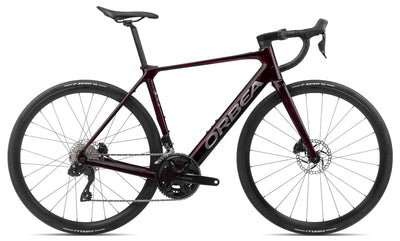

Orbea Gain M30i 2024 Wine Red Carbon View
R31810CF
The Many Faces Of Joy
Rider and bike working in perfect synergy, you are breathing hard and your heart is pumping but you are in control and having fun. This isn’t about riding faster, it isn’t even about riding further, this is just about having more fun each and every time you ride.
350Wh downtube
Investing the weight savings we made with the new Gain in a bigger battery allows us to increase the range and reduce the overall weight simultaneously. That means you can pretty much forget about the battery level unless you plan on climbing more than 4000m.
More capable than ever
Clearance for 35mm tyres means that Gain matches your vision of e-road, even if that goes further than tarmac and onto some gravel.
ICR plus
Cables are carefully guided along the best path under the stem and through the head tube, with no rub or rattle, and are optimized for both traditional and electronic shifting systems.
Passt gut zu
Fast and secure delivery
Personalised advice
2-year warranty
Hassle-free returns

Orbea Gain M30i 2024 Wine Red Carbon View
Sollten Sie Fragen haben, können Sie sich jederzeit gerne an uns wenden. Wir melden uns so schnell wie möglich bei Ihnen – an Werktagen innerhalb von 24 Stunden.
-
Versandinformationen
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kundensupport
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
FAQ’s
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kontakt
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
Produktdetails
General
- Year
- 2024
- Gender
- Unisex
- Family
- Bicis
- Wheel size
- 700
Frame
- Frame
- OMR
- Fork
- Gain OMR carbon fork, 700x35 maximun tyre, Flat Mount disc, Thru Axle 12x100mm, thread M12x2 P1
- Headset
- FSA 1-1/2" Integrated Aluminium Cup
Cockpit
- Handlebars
- OC Road Performance RP21 Alu SL, Reach 80, Drop 125
- Stem
- OC Road Performance RP10, -8º
- Bar tape
- Orbea Anti-Slippery/Shock Proof
Brakes
- Front brake
- Shimano R7170 Hydraulic DiscDisc brake with hydraulic actuation
- Rear brake
- Shimano R7170 Hydraulic DiscDisc brake with hydraulic actuation
Saddle
- Saddle
- Fizik Aliante R5
- Seatpost
- SP 0.2 Carbon, 27.2mm, Setback 20
Drivetrain
- Shift levers
- Shimano Di2 R7170
- Rear derailleur
- Shimano 105 Di2 R7150
- Front derailleur
- Shimano 105 Di2 R7150
- Cassette
- Shimano 105 R7100 11-34t 12-Speed
- Chain
- Shimano M7100
- Chainrings
- Shimano 105 R7100 34x50t
- Crankset
- Shimano 105 R7100 34x50t
- Speeds
- 2x12
Wheels
- Front wheel
- Alloy, Tubeless, 700c, 21c
- Rear wheel
- Alloy, Tubeless, 700c, 21c
- Front tire
- Pirelli P ZERO™ Race SmartEVO TLR 700x30c
- Rear tire
- Pirelli P ZERO™ Race SmartEVO TLR 700x30c
- Front hub
- Orbea Thru Axle 12x100mm M12x2 P1 Lite
- Rear hub
- Orbea Thru Axle 12x142mm M12x2 P1 Lite
eBike Components
- Motor
- Mahle motor hub X20, ALC
- Battery
- Mahle iX350 36V 353Wh
- Charger
- Mahle Active Charger up to 4A
- Screen
- Mahle Pulsar One monochrome ANT+ LEV
- Remote control
- Mahle ONE Head Unit (BT/ANT+)
Other Components
- Front light
- Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
