Trek Checkpoint ALR 3 Gen 3 2026 Dark Carmine
5332750

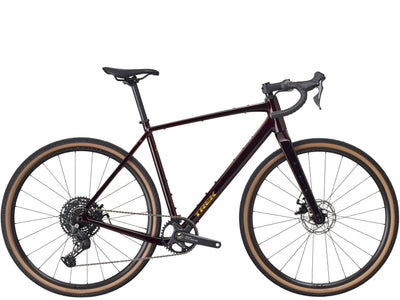

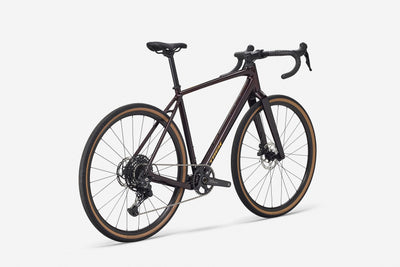

Trek Checkpoint ALR 3 Gen 3
The Trek Checkpoint ALR 3 Gen 3 is an aluminum gravel bike designed to deliver unlimited adventures on any terrain. Its modern endurance geometry provides comfort and control on gravel roads or rough surfaces, while the carbon fork absorbs vibrations for a smoother ride.
Key Features
- Frame: 300 Series Alpha Aluminum, internal cable routing, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm beveled thru axle. It offers a strong and versatile foundation for gravel riding.

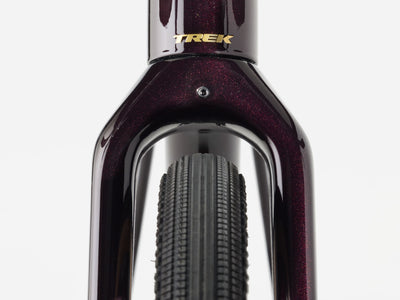

- Fork: Trek Checkpoint full carbon fork, tapered head tube, rack and fender mounts, flat-mount rotor, 12x100mm thru axle. Improves control and absorbs rough terrain.

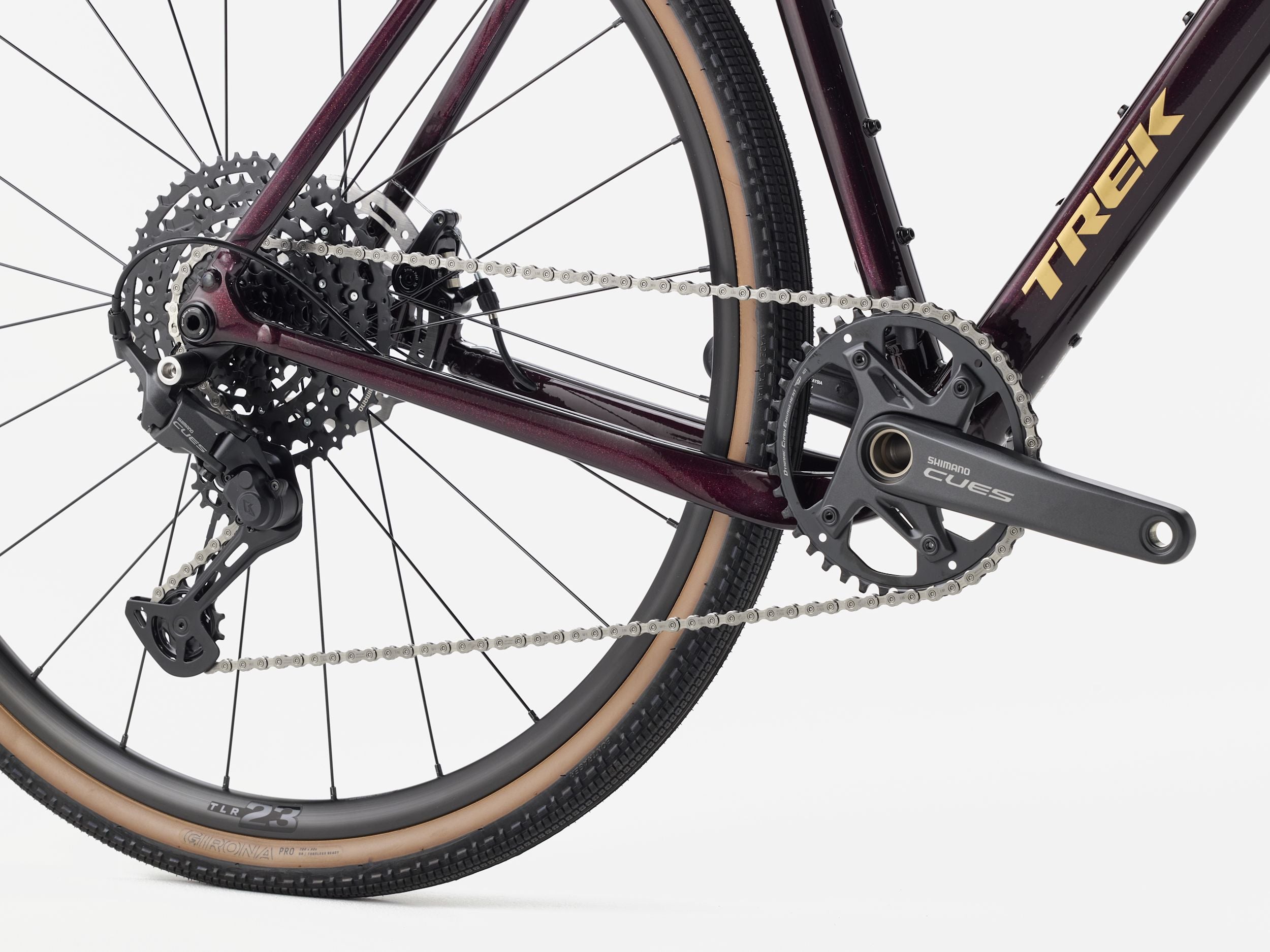

- Drivetrain: Shimano Cues U6000 10-speed (Shimano Cues U6000 GS rear derailleur, Shimano Cues U3030 shifters). Reliable, durable, and with an 11-48T cassette for a wide range of gears.
- Brakes: Tektro C550 mechanical disc brakes with 160mm Tektro rotors. They provide confident, adjustable braking in a variety of conditions.
- Wheels: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width. Tubeless-ready rims that offer good performance and resistance.
- Tires: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, Aramid bead, 60 tpi, 700x42 mm. Designed for gravel, they offer grip, durability, and comfort.
- Handlebar: Bontrager Elite Gravel, alloy, 42 cm width. Designed for gravel, it provides a comfortable position and control on uneven terrain.
- Stem: Bontrager Elite, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length. Allows for a snug, accessory-compatible riding position.
- Seatpost: Bontrager Alloy, 27.2mm, 12mm offset, 330mm long. Setback for an optimized seating position.
- Saddle: Verse Short Comp, steel rails, 145mm wide. Designed for comfort on gravel rides.
Usage and Benefits
- Off-road Versatility: Equipped for gravel, asphalt and any adventure, with tire clearance up to 50 mm.
- Long-Distance Comfort: The Endurance geometry and carbon fork reduce fatigue on long rides.
- Cargo Capacity: Numerous mounts on the frame and fork allow the installation of racks, fenders and bikepacking bags.
- Durability and Low Maintenance: The Shimano Cues U6000 groupset is known for its durability and ease of maintenance.
- Future-Ready: Compatible with dropper post and suspension fork (in most sizes) for greater customization and performance.
Summary
The The Trek Checkpoint ALR 3 Gen 3 is an affordable and highly capable gravel bike, ideal for riders looking to explore new trails. It combines a robust aluminum frame, reliable components like the Shimano Cues groupset, and a design built for comfort and versatility, making it a great choice for bikepacking or everyday use.
Passt gut zu
Fast and secure delivery
Personalised advice
2-year warranty
Hassle-free returns
Trek Checkpoint ALR 3 Gen 3 2026 Dark Carmine
Sollten Sie Fragen haben, können Sie sich jederzeit gerne an uns wenden. Wir melden uns so schnell wie möglich bei Ihnen – an Werktagen innerhalb von 24 Stunden.
-
Versandinformationen
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kundensupport
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
FAQ’s
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
-
Kontakt
Verwenden Sie diesen Text, um die Fragen Ihrer Kunden so ausführlich wie möglich zu beantworten.
Produktdetails
General
- Year
- 2026
- Gender
- Unisex
- Family
- Bicis
- Wheel size
- 28
Frame
- Frame
- Aluminio Alpha Serie 300, guiado de cables interno, guíacadenas 3S, T47, UDH, anclajes para portabultos y guardabarros, anclajes integrados para bolsa de cuadro, disco flat mount, eje pasante biselado de 142x12 mm
- Fork
- Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Cockpit
- Handlebars
- Bontrager Elite Gravel, aluminio, anchura de 44 cm
- Stem
- Bontrager Elite, 31,8 mm, compatible con Blendr, 7 grados, longitud 90 mm
Brakes
- Front brake
- Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset // Shimano CUES U3030 // Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor. Tektro, centerlock, 160 mm Tamaños máximos del Disc brake with hydraulic actuation
- Rear brake
- Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset // Shimano CUES U3030 // Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor. Tektro, centerlock, 160 mm Tamaños máximos del Disc brake with hydraulic actuation
Saddle
- Saddle
- Verse Short Comp, raíles de acero, anchura de 145 mm
- Seatpost
- Bontrager de aluminio, 27,2 mm, retroceso de 12 mm, longitud de 330 mm
Drivetrain
- Shift levers
- Shimano CUES 10 Speed Right STU303010R
- Rear derailleur
- Shimano CUES U6000 GS
- Cassette
- Shimano CUES LG300, LINKGLIDE, 11-48, 10 velocidades
- Chain
- Shimano LG500
- Crankset
- Shimano CUES FCU60301, plato de 40T, longitud de 172,5 mm Praxis, T47 roscado, rodamiento interno
- Pedals
- Not included
- Speeds
- 1x10
Wheels
- Front wheel
- Bontrager Paradigm 23, Tubeless Ready, 24 orificios, anchura de 23 mm, válvula Presta Bontrager de aluminio, rodamiento sellado, disco centerlock, eje pasante de 100x12 mm Bontrager de aluminio, rodamiento sellado, centerlock disco, núcleo Shimano de 11 velocidades, eje pasante de 142x12 mm
- Rear wheel
- Bontrager Paradigm 23, Tubeless Ready, 24 orificios, anchura de 23 mm, válvula Presta Bontrager de aluminio, rodamiento sellado, disco centerlock, eje pasante de 100x12 mm Bontrager de aluminio, rodamiento sellado, centerlock disco, núcleo Shimano de 11 velocidades, eje pasante de 142x12 mm
- Front tire
- Bontrager Girona Pro, Tubeless Ready, protección antipinchazos GR, aro de aramida, 60 tpi, 700x42 mm
- Rear tire
- Bontrager Girona Pro, Tubeless Ready, protección antipinchazos GR, aro de aramida, 60 tpi, 700x42 mm
